How energy efficiency is improved
Semi-automatic adaptation to valve, automatic stroke path detection, precision activation and high energy efficiency

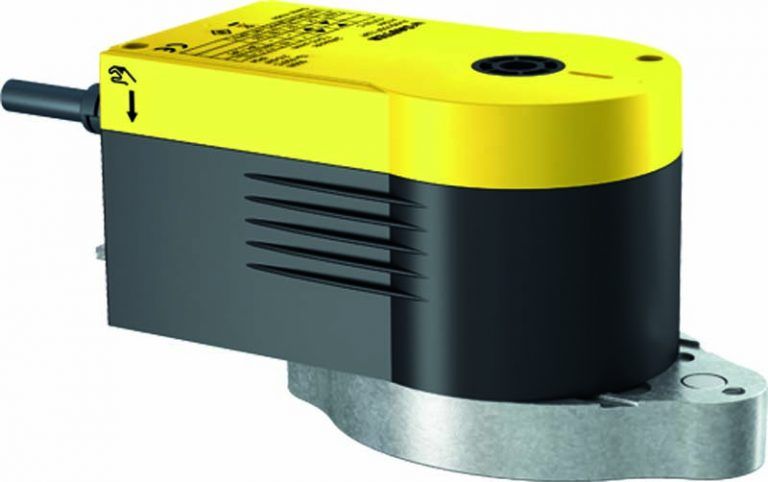

Actuation of 2- and 3-way valves
For controllers with a switching (2- and 3-point) or continuous (0…10 V) output
Stepping motor with SAUTER Universal Technology (SUT) electronic control unit and electronic,
force-dependent cut-off
Automatic recognition of applied control signal (continuous or switched)
Coding switches for selecting characteristic and running time
Type of characteristic (linear/equal-percentage) can be set on the actuator
Automatic adaptation to valve stroke
Direction of operation can be selected directly on the cable
Maintenance-free gear unit
Gear unit can be disengaged in order to position the valve by hand with the hexagon key provided
(load-free)
Connection with valve spindle performed semi-automatically after control voltage is applied
Fitting vertically upright to horizontal, not suspended
