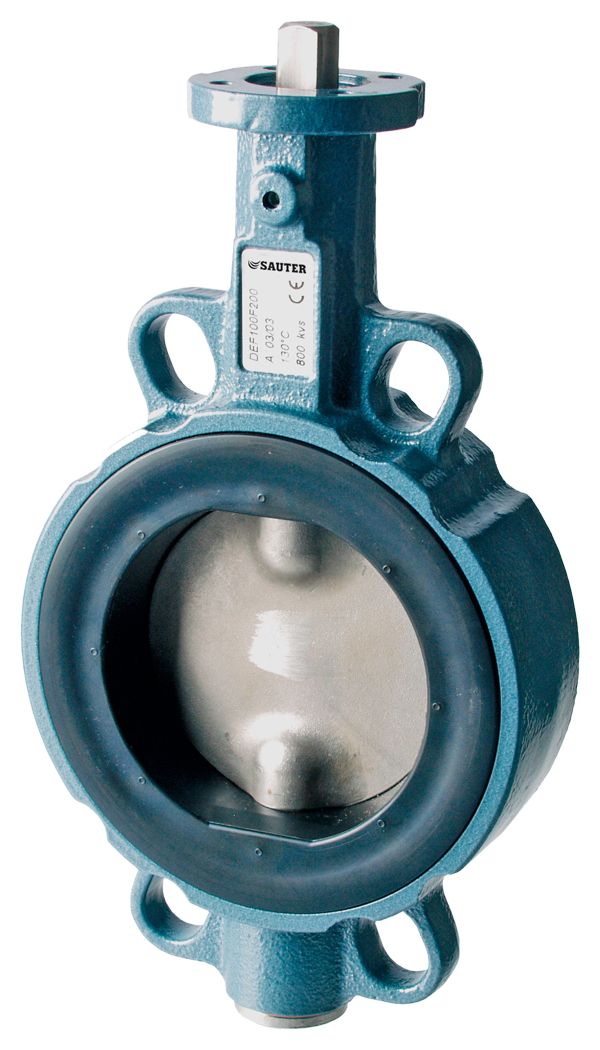

Tight-sealing butterfly valve, PN 16

DEF

Tight-sealing butterfly valve, PN 16

How energy efficiency is improved

Intelligent collar design for working without loss through leakage


Funktioner

  • For cutting off and regulating water and low-pressure steam up to 110 °C

  • Butterfly valve with 3-way brass bearing bush as spindle bearing

  • Fits PN 6, PN 10 and PN 16 flanges

  • Can be combined with motorised actuators of the ADM 322 and A44W type or damper actuators with spring return of the ASM 124, 134 and ASF 122, 123 type

  • Damper body made of grey cast iron

  • Collar made of ethylene-propylene rubber

  • Butterfly disc made of stainless steel

  • Spindle made of stainless steel with two O-rings
