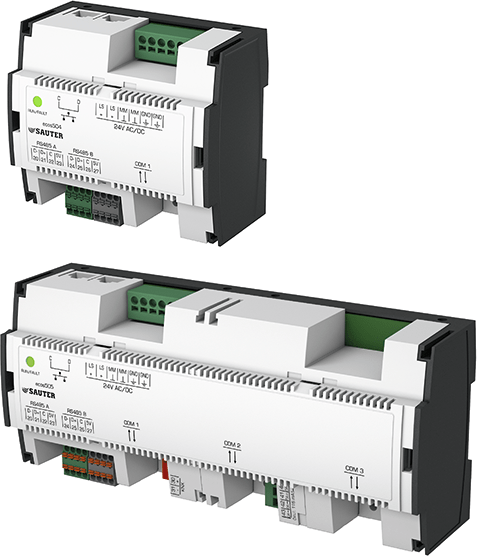

Room automation station, ecos504/505
EY-RC 504/505
How energy efficiency is improved
Powerful function modules in the ecos504/505 integrate the regulation of the room temperature, lighting and sunshading to create a comfortable room climate with minimum energy consumption
Funktioner
-
Part of the SAUTER modulo 5 system family
-
Modular room automation station (AS) for up to eight rooms or eight flexible room segments
-
BACnet/IP communication (EN ISO 16484-5) as BACnet Building Controller (B-BC)
-
The ecoUnit 3 and ecoUnit 1 room operating units enable individual adjustment of the room climate
-
Optimises energy consumption thanks to presence function, window contact monitoring, demand-controlled ventilation, control of lighting and window blinds, and time-dependent setpoint specification
-
Function libraries for climate, lighting and sunshading
-
Expansion bus for remote ecoLink modules, ecoUnit room operating units and EnOcean wireless interface
-
KNX interface to connect KNX operating units, sensors and actuators
-
Integrated KNX tunnelling function (KNX/IP) for the commissioning of KNX with ETS
-
DALI interface with DALI bus power supply for the connection of DALI electronic ballasts (EB) and DALI sensors
-
Web-based commissioning tool for DALI network
-
SMI interface (SMI/SMI LoVo) for activating SMI motors for sunshading (window blinds, roller shutters)
-
Integrated tunnelling function for commissioning with SMI-easyMonitor
-
RS-485 half duplex, electrically isolated interface for Modbus/RTU, Modbus/ASCII
-
Baud rate 600 to 115,200 bit/s with configurable RS-485 network resistors
-
Modbus master with up to four simultaneous communication profiles
-
Integrated tunnelling function for commissioning and monitoring with serial Modbus master tools
-
Physical M-Bus interface and RS-232 interface for external M-Bus level converters
-
Supports M-Bus baud rates of 300 to 38,400 bit/s
-
M-Bus master function with up to four simultaneous communication profiles
-
Integrated tunnelling function for commissioning and monitoring with M-Bus tools
-
Time programme and calendar function; data recording
-
Integrated moduWeb web server (EY-RC504F101 only)
-
Integrated (EYRC504F202 only) or licensable MQTT functionality (MQTT Broker / Client)
-
Engineering/programming using SAUTER CASE Suite (based on IEC 61131-3)
-
Integration into the building management system via BACnet/IP with Ethernet interface
SAUTER ecos504/505: BACnet certification for the centrepiece of room automation
