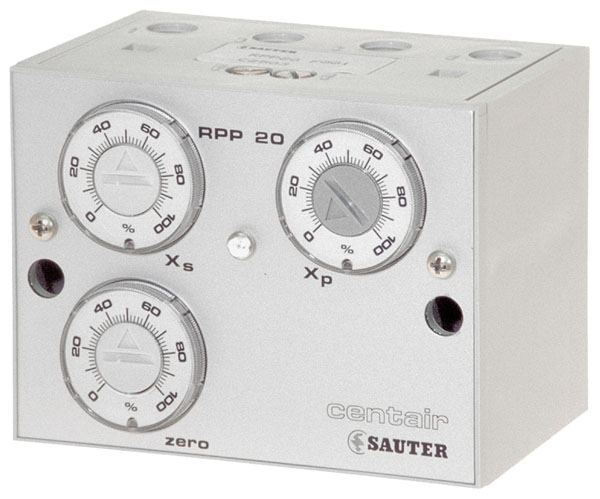

P-controller

RPP 20

P-controller
How energy efficiency is improved
Enables the implementation of individually optimised controls for maximum efficiency in pneumatic installations.

Areas of application
Pneumatic control of temperature, pressure, differential pressure, humidity and flow rate in combination with appropriate transducer.

Properties
  • P fixed-value controller for universal use
  • Application as switching relay (On/Off controller) possible
  • Controller front panel is printed with circuit diagram for rapid identification of function
  • Thermoplastic housing suitable for wall or top-hat rail mounting
  • Compressed-air connections with Rp 1/8" female thread
  • Complies with directive 97/23/EC Art. 3.3 on pressure equipment

Technical description
  • Supply pressure 1.3 bar ± 0.1
  • Easily accessible adjusters for XS (setpoint), XP (P range), zero point
  • Inputs for:
    • actual value
    • remote setpoint adjustment
  • Outputs for:
    • output pressure for damper drive
