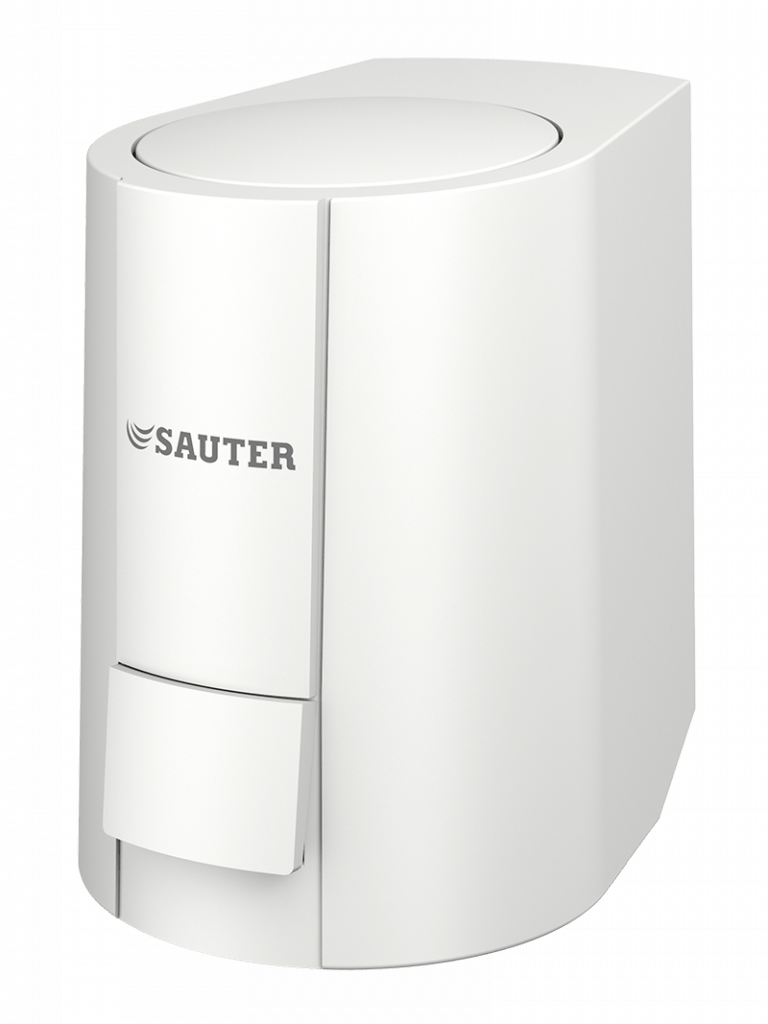

Continuous thermal actuator for unit valves with stroke indicator

AXS 315S

Continuous thermal actuator for unit valves with stroke indicator

How energy efficiency is improved

Reliable actuation in efficient control systems


Funktioner

  • Actuation of unit valves and valves in surface heating and cooling systems as well as fan coils

  • First-open function for low-force fitting on the valve using adapter ring

  • NC “normally closed” and NO “normally open” versions

  • NC version with first-open function

  • Adaptation to valve using plastic adapter M30 × 1.5 or M28 × 1.5

  • Max. closing force 125 N

  • With 24 V thermal expansion element

  • Large visible and tactile position indicator

  • Low-noise and maintenance-free

  • Contemporary design

  • High functional quality and service life

  • Version with 1m, 2m or 5m plug-in cable

  • PVC or halogen-free cable, with or without position feedback, available as an accessory

  • Can be mounted in any position, even suspended under the valve
